Name: Automated metal testing china tensile testing machine with high quality
Brand: Automated metal testing china tensile testing machine with high quality
SKU: WDW-100G, WDW-100
Price: 5 USD
Availability: InStock
Rating: 4.7 (165 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1 Year

Customized support: OEM, ODM, OBM

Model Number: WDW-100G

Power: Electronic

Model: WDW-100

Capacity: 100KN 200KN

Brand: Hualong

Accuracy: 0.5 Class

Certificate: ISO, CE , ASTM

Origin: China, Shanghai

Material: Metal

MOQ: 1 Set

Language: English, Chinese , Russian, Turkish

Testing Speed Range: 0.001 -400 mm/min / 0.00004 -15.6 in/min

Πιστοποίηση: ISO, CE

Βασικές πληροφορίες

Πιστοποίηση: ISO, CE , ASTM, ISO, CE

Model Number: WDW-100G, WDW-100

Πληρωμής & Αποστολής Όροι

Packaging Details: polywood case

Supply Ability: 20 Set/Sets per Month

Περιγραφή προϊόντων

Test china tensile computerized testing machine with high quality

WDW-100 Parameter

Introduction:

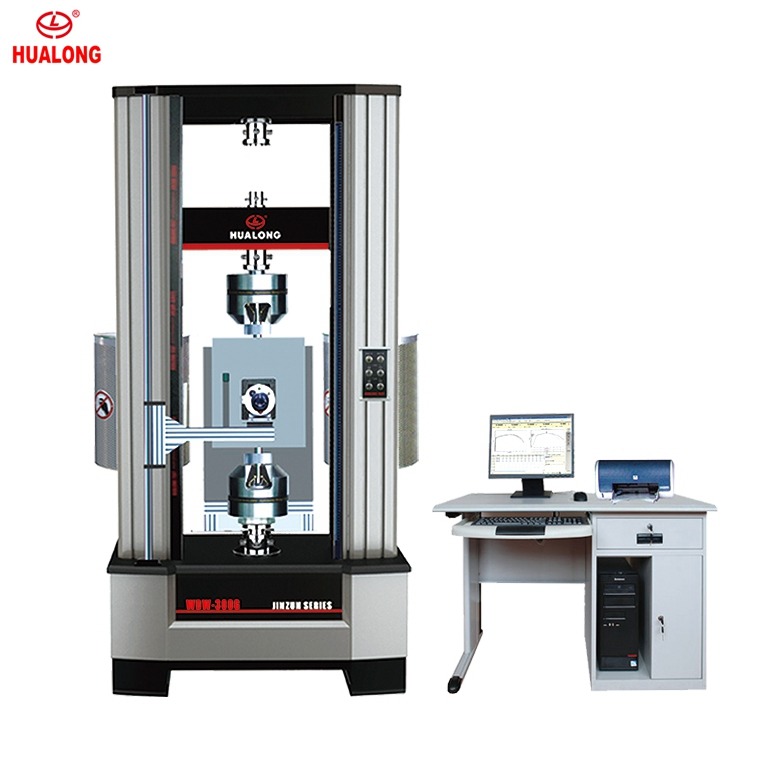

HUALONG WDW series single column electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.

Technical Prameter:

Model	WDW-100C
Load frame
Capacity	100kN / 22,500 lbf
Load Resolution	Capacity / 500, 000 (fully auto scaling of single measurement range)
Test area width	550mm / 22 inch
Maximum Crosshead Travel	1200 mm / 47 inch (excluding grips)
Maximum tensile space	900 mm / 35 inch
Height	2400 mm / 94 inch
Width	600 mm / 24 inch
Length	1100 mm / 43 inch
Weight	800 kg
Noise level measured at maximum test speed	58 dB(A)

High and low Temperature Chamber
Temperature range	-40~150℃ or as your request
Inner chamber size	400350600 or as your request

WDW DETAILS
