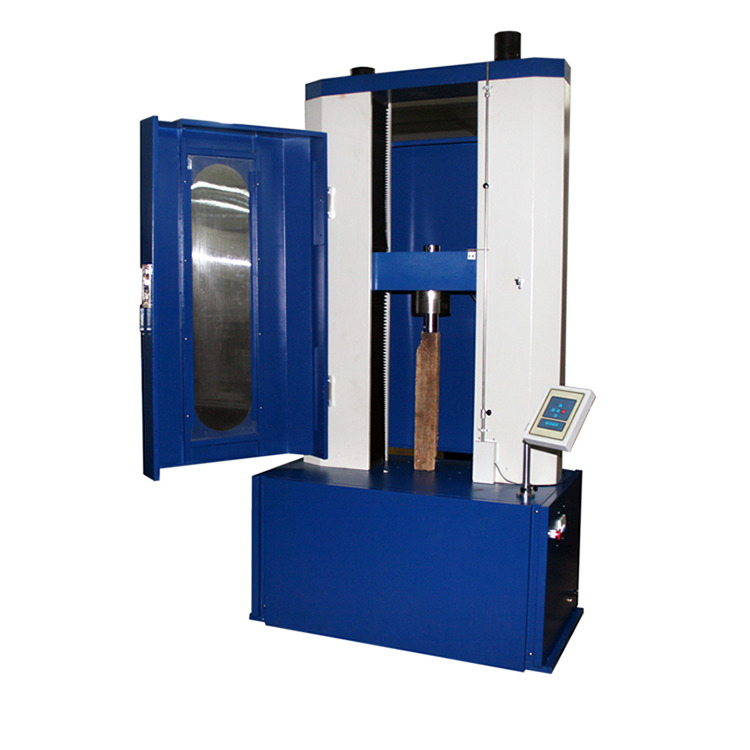

ZME-1001 Laboratory Equipment High Quality Universal Tensile Testing Machine

1 Set
MOQ
ZME-1001 Laboratory Equipment High Quality Universal Tensile Testing Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: ZME-1001
Power: Electronic
Product name: Tension Testing Machine
Maximum load: 5ton, 10ton option
Accurate grade: 1 grade /0.5 grade
Measuring accuracy: Display the value ±1%/Display the value±0.5%
Range of testing speed: 0.001~500mm/min
Accuracy of displacement measurement: Tolerance: ±0.5%/ tolerance: ±0.2%
Testing platform moving device: Fast /slow two speeds to control,can jog
Overload protection: Overload 10%,automatic protection
Fixture: A set of tensile fixture
Power supply: 220V, 50HZ
Βασικές πληροφορίες
Model Number: ZME-1001
Πληρωμής & Αποστολής Όροι
Packaging Details: Concrete compressive strength test equipment was packaged by export standard wooden case
Supply Ability: 200 Set/Sets per Month Universal Tension Testing Machine
Περιγραφή προϊόντων

Product Description

Introduction:

ZME-1001 Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.

Corresponding standard :

<<GB/T16491-1996 electronic universal testing machine>>

Technical parameter:

ModelZME-1001
Maximum load5ton, 10ton option
Accurate grade1 grade / 0.5 grade
Effective measuring range0.2%~100% (1 grade)/0.4%~100% (0.5 grade)
Measuring accuracyDisplay the value ±1%/Display the value±0.5%
Tester resolutionMax load 1/200000
Load sensorBasic configuration: sensor (max load): one
Extended configuration: can add more sensors
Effective testing width400mm (can be customized )
Effective tensile space400, 500, 600mm ( can be customized )
Range of testing speed0.001~500mm/min

Accuracy of displacement

measurement

Tolerance: ±0.5% / tolerance: ±0.2%
Deformation of measured systemMix span: 10mm, Max range of deformation: 800mm
Accuracy of measured deformationTolerance: ±0.5% ( according to customized )
SafetyElectronic-limit protection
Testing platform moving deviceFast /slow two speeds to control, can jog
Back to function of testing platform

Manual or automatic operation, after the test, the moving iron return to

initial position with the highest speed by manual or automatic operation

Overload protectionOverload 10%, automatic protection
FixtureA set of tensile fixture
Machine size1040×590×2000mm ( length*width*height )
Power systemPanasonic AC Servo Motor + Driver + high-precision ball screw
Power supply220V, 50HZ
Power0.75KW ( depending on different motor )
Weight(about) 500 Kg

Main function:

Mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Applicable industry:

It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.

Product details

Product categories

Tension Testing Machine

Company Information

Tension Testing Machine

Certifications

Tension Testing Machine

FAQ

1. Q: What is your warranty ?

- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.

4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.

5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.

6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.

7. Q:what about the packing of equipment?
- Covered with air bubble film before put the machine into the stanard exporting wooden case,
which not only has good shock absorption, impact resistance, heat sso has the advantages of nontoxic,
odorless, moisture corrosion, good transparency etc.
