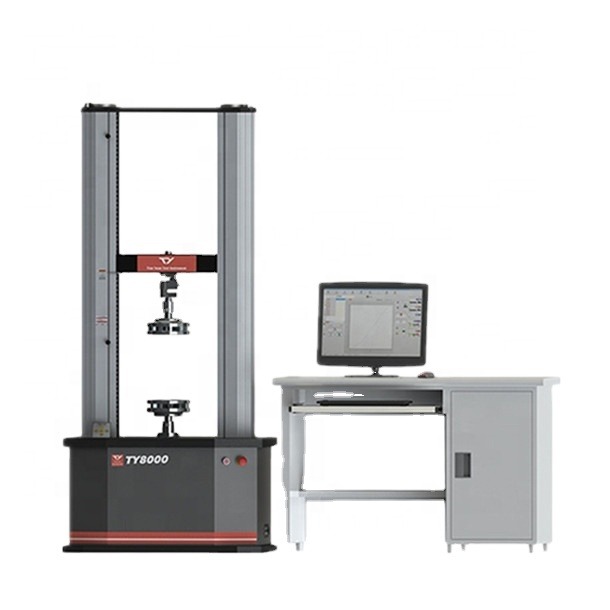

Name: 445mm Electronic Universal Tensile Testing Machine 20kN/30kN/50kN With Low Price
Brand: 445mm Electronic Universal Tensile Testing Machine 20kN/30kN/50kN With Low Price
SKU: TY8000-A
Price: 1 USD
Availability: InStock
Rating: 4.7 (182 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1Year

Model Number: TY8000-A

Power: Electronic

Application: Lab, research center, QC department

Function: tensile, bending, compression, peeling test for metal

Load Cell: 20KN,30KN,50KN

Load Accuracy: Â±0.5%

Load Value Resolution: 1/500000

Test Speed: 0.001~1000mm/min

Vertical Stroke: 1000mm

Effective Width: 445mm

G.W./N.W.: 600/520KG

Machine Dimension: 880*550 *1960mm

Βασικές πληροφορίες

Model Number: TY8000-A

Πληρωμής & Αποστολής Όροι

Packaging Details: PE film wrapping and Plywood Case.

Supply Ability: 500 Set/Sets per Year

Περιγραφή προϊόντων

Product Description

Electronic universal testing machine is suitable for material analysis and inspection of engineering plastics, reinforced nylon, modified plastics, plastic profiles, plastic pipes, plastic sheets and films.
TY-8000A series of servo motor universal testing machine's performance reaches international advanced level, is widely used for testing the tensile elastic modulus, bending elastic modulus, compression modulus, yield strength, tensile strength, fracture strength, elongation at break, compression stress, compression strain, shear, peel, tear and other mechanical properties of various thermosetting and thermoplastic plastics.

Main Features

1. High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.
2. Planetary deceleration system drives the ball screw to realize the test loading process.
3. Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.
4. Easy-to-use software, multiple curve type and dynamic curve display.
5. Data acquisition frequency up to 1000Hz (need to be customized)
6. High speed data processing system.
7. Data can be reanalyzed through the graphical processing module to realize the second edit.

8. Excel report can be exported, or printed out directly.

Conform to Following Standards
4.1 GB/T2611<Testing Machine General Technical Conditions> and GB/T 16491<Electronic Universal Testing Machine>for manufacturing;
4.2 GB/T12160<Uniaxial testing machine with extensometer requirements> and GB/T16825<Tensile testing machine> for examination and acceptance;
4.3 Applicable ASTM, DIN, ISO, JIS, BS and other international.

Curve Type

Load – Time

Load - Displacement
Load - Extenstion
Extension - Time
Displacement - Time
Stress VS Strain

Specifications for TY8000-A Universal Testing Machine
Model	TY8000-A
Capacity(optional)	20KN~50KN
Unit(Switchable)	Kg, lb, N, kN
Load Accuracy	≤±0.5%
Load Resolution	1/500000
Test force measurement range	0.4%-100%FS
Deformation measurement range	0.2%-100%FS
Power control rate adjustment range	0.01-5%FS/S
Power control rate relative error	Within Setpoint ±1%
Deformation rate adjustment range	0.02-5%FS/S
Deformation controlled rate relative error	Within Setpoint ±1%
Constant force, constant deformation, constant displacement control	0.5%--100%FS
Stroke(exclude the grips)	1000mm
Effective width	445mm
Test speed	0.001~500mm/min
Speed Accuracy	≤±0.3%
Stroke Resolution	0.01mm
Dimension(WxDxH)	880×550×1960mm
Weight(approx..)	520kg
Power supply	220V±10%, 900W

Detailed Images

Part List

No.	Name	Details	Qty.	Brand
1	UTM	Mainframe	1pc	Tianyuan
1.1	Motor+Driver	Servo motor and driver	1set	Panasonic
1.2	Transmission system	Planetary Reducer	1set	Taiwan LM
2	Load Sensor	20KN	1set	IMG LOGICS(USA)
3	Grips	Tensile test grips for copper bar	1 pair	Tianyuan
4	Pin	Used for fixing joints and fixtures	2pcs	Tianyuan
5	User Manual		1pc	Tianyuan
6	USB flash disk	With E-user manual inside	1pc	Tianyuan
7	Data cable		1pc	Tianyuan
8	Power cord		1pc	Tianyuan
9	Tools	Hex Wrenches kit	1set	Tianyuan
10	foot screw		4pcs	Tianyuan
11	Tracker Line	Spare parts for extensometer	1pc	Tianyuan

Maintainence

Item	Content
1 Installation and work environment requirements	1.1 Smooth ground, good ventilation, no corrosive gas.
		1.2 No strong source of electromagnetic radiation nearby.
		1.3 There is adequate maintenance space around the equipment.
		1.4 Environmental temperature:20℃~35℃
		1.5 Relative humidity requirement:≤85%R.H.
2. Maintenance requirements	2.1 computer used in the test machine is not recommended to be connected to the Internet.
		2.2 Check whether the connected sensor range is correct before test if there are multiple sensors.
		2.3 Do not exit the software interface during the test to avoid errors.
		2.4 After the test machine is finished, the surface of the table should be cleaned.
		2.5 After cleaning, the fixture surface should be evenly sprayed with anti-rust oil.
		2.6 Spray anti-rust oil on the fixture every 15 days if the test machine is not used for a long time.

Packing & Delivery

Packaging
Size	9506002100mm(LxWxH)
Weight	600KG
Packaging Details	The normal package is PE film wrapping and PLYWOOD box(Size:9506002100mm, LxWxH). We will also pack the machine according to customers' special request.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service ON-LINE.
