Name: ISO 15630-1 Metal Deformed Steel Rebars Tensile Strength Testing Machine
Brand: ISO 15630-1 Metal Deformed Steel Rebars Tensile Strength Testing Machine
SKU: WAW-300E WAW-600E WAW-1000E
Price: 1 USD
Availability: InStock
Rating: 4.6 (123 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: WAW-300E WAW-600E WAW-1000E

Power: Hydraulic

rebar tensile testing machine: Rebar Tensile Strength Testing Machine

Max Load Capacity: 1000kN Univesal Testing Machine

Testing machine mode: Servo Hydraulic Universal Testing machine

Test types: Tensile Test, Compression Test, Bending Test etc.

Test material: Metal, Steel, Steel bar, wire rope, rubber, plastic,cable

Tensile Strength Testing Machine: 1000kN Tensile Strength Testing Machine

Testing standard: ASTM A 615, BS 4449, ISO 15630-1

Βασικές πληροφορίες

Model Number: WAW-300E WAW-600E WAW-1000E

Πληρωμής & Αποστολής Όροι

Packaging Details: Plywood case, Rebar Tensile Strength Testing Machine

Supply Ability: 200 Set/Sets per Year Rebar Tensile Strength Testing Machine

Περιγραφή προϊόντων

ISO 15630-1 Deformed steel rebars Tensile Strength Testing Machine

8mm-32mm Steel Bar Rebar Tensile Strength Testing Machine

(4 Columns + 2 leading screws, 1000kN, 100Ton)

Product Description

1. Introduction

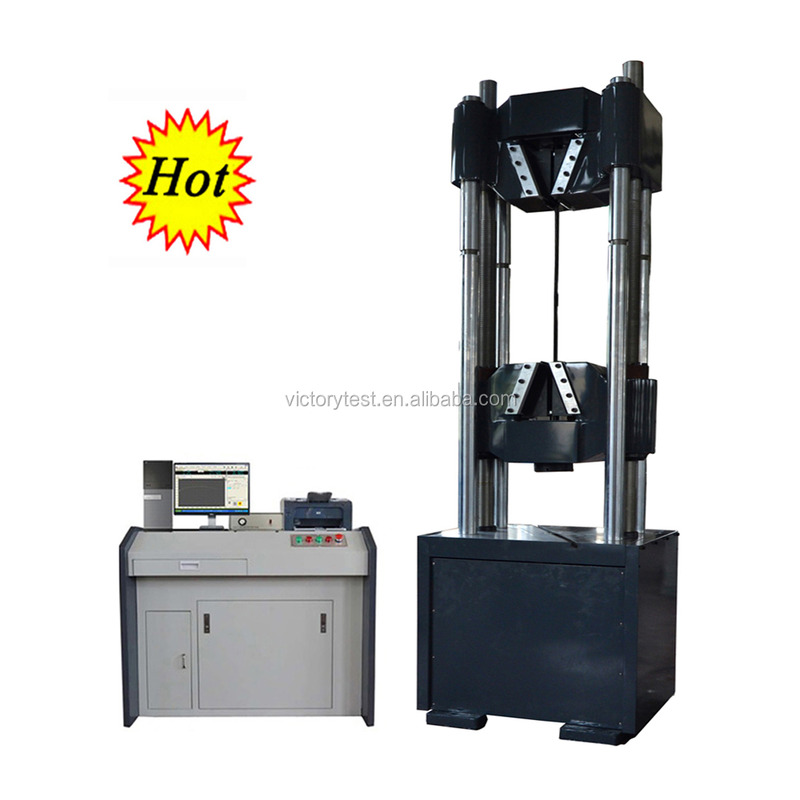

This WAW-1000E Rebar Computerized Electro-hydraulic Servo Universal Testing Machine is widely used for tensile and bending test for steel rebar, carbon steel bar, deformed steel bar.

It adopts 4 columns with chrome plated and 2 leading screws, high stiffness, more stable.

Press button operated hydraulic tensile grips, easy operate.

It's computer controlled servo hydraulic type, the piston goes up and high precision load cell directly measuring testing force, encoder measuring displacement and electric extensometer measuring specimen's extension. The machine is calibrated according to ISO 75001 and ASTM E4.

2. Main technical parameters

Parameter Model	WAW-300E	WAW-600E	WAW-1000E	WAW-2000E
Max. testing force (kN)	300	600	1000	2000
Accuracy	±0.5% of reading value
Round specimen diameter range (mm)	φ10-φ32	φ10-φ40	φ10-φ55	Φ15-φ70
Flat specimen thickness range (mm)	0-25	0-30	0-40	10-70
Flat specimen width range (mm)	75	90	100	120
Tensile space (mm)	600	740	800	950
Compression space (mm)	530	650	670	750
Clearance between columns (mm)	465	485	515	700
Upper and lower compress plates size (mm)	φ120	φ160	204×204	φ240
Distance of bending by pass roll (mm)	30-400	30-430	30-380	50-430
Max. piston stroke (mm)	200	200	250	250
Power supply	380V±10%, 50Hz, three phase
Work environment	10-40℃, Relative humidity≤80%
Dimension of host machine (mm)	740×620×2058	790×690×2330	880×760×2660	1120×850×3270
Dimension of control cabinet (mm)	1150×870×650
Weight (kg)	1800	2500	3500	5000

3. Photos

Tensile Test with extensometer Bending Test

4. Test software and test report:

Packaging & Shipping

The package is Standard Export package-Plywooden case.

We can ship the machines 30 working days after order.

Our Services

Warranty Period is 13 months.

We can provide life-long after-sale service.
