Name: Plastic Hydrostatic Pressure and Burst Test ISO 1167 ASTM D1598 PVC Pipe Hydrostatic Pressure and Burst Tester Machine
Brand: Plastic Hydrostatic Pressure and Burst Test ISO 1167 ASTM D1598 PVC Pipe Hydrostatic Pressure and Burst Tester Machine
SKU: XGNB-10 XGNB-16 XGNB-25, XGNB-10 XGNB-16 XGNB-25
Price: 1 USD
Availability: InStock
Rating: 5 (145 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1 Year

Customized support: OEM

Model Number: XGNB-10 XGNB-16 XGNB-25

Power: Electronic

Product name: Plastic PVC Pipe Hydrostatic Pressure and Burst Tester Testing Machine

Application: Hydrostatic Pressure and Burst Test

Model: XGNB-10 XGNB-16 XGNB-25

Max load: 10Mpa, 16Mpa, 25Mpa

Testing Sample: HDPE, PVC, PE, PP, PVC-UH, PVC-O,PPR, ABS and other plastic pipes

Power supply: 220V/380V 50Hz/60Hz

Standard: ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

Testing pipe diameter: 16-2000mm

Brand: GT-GoldenTech

Certificate: ISO, CE

Βασικές πληροφορίες

Πιστοποίηση: ISO, CE

Model Number: XGNB-10 XGNB-16 XGNB-25, XGNB-10 XGNB-16 XGNB-25

Πληρωμής & Αποστολής Όροι

Packaging Details: Outside package: standard export wooden case, ISO 1167 ASTM D1598 Plastic PVC Pipe Hydrostatic Pressure and Burst Tester

Supply Ability: 200 Set/Sets per Month ISO 1167 ASTM D1598 Plastic PVC Pipe Hydrostatic Pressure and Bu

Περιγραφή προϊόντων

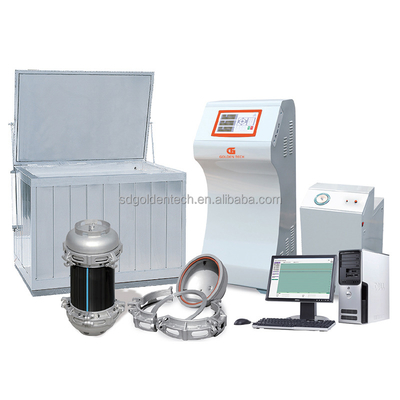

ISO 1167 ASTM D1598 Plastic PVC Pipe Hydrostatic Pressure and Burst Tester Testing Machine

Product Description

1. Application:

XGNB Series Hydrostatic Pressure and Burst Testing Machine is used to determine the long-term hydrostatic strength and instant blasting of HDPE, PVC, PE, PPR, ABS and other plastic pipes. It conforms to the test standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

2. Testing Standard:

ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

3. Main Technical Parameters:

Model	XGNB-10	XGNB-16	XGNB-25
Max pressure	10MPa (100Bar)	16MPa (160Bar)	25MPa (250Bar)
Resolution of pressure testing	0.001MPa, 0.01Bar
Accuracy of pressure control	-1% ~ +2%
Test station	3 stations (standard supply) or more stations can be customized
Testing pipe diameter	Φ16-Φ2000mm
Control range of water temperature	Room temperature to 95°C or 15°C to 95°C
Time range	0 - 10000h
End caps material	carbon steel / stainless steel
