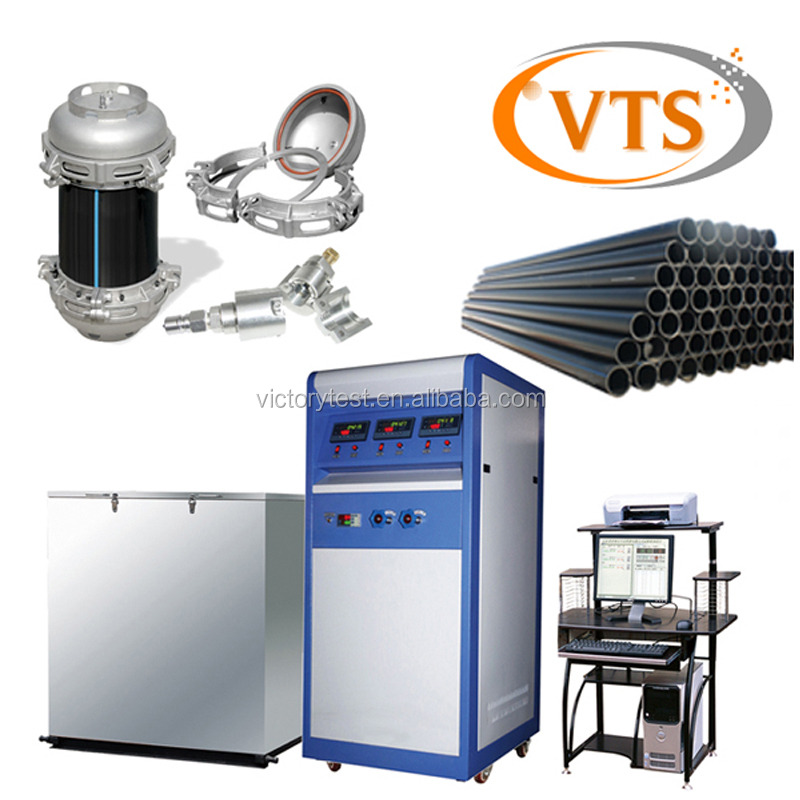

Carbon Steel Plastic Pipe Hydrostatic Pressure Testing Machine ASTM D1598

PVC PPR PE Pipe

Hydrostatic Pressure and Burst Testing Machine

for ISO 1167 EN 921 ASTM D1598 standard

(10MPa, 16MPa, 25MPa, 3 stations, room temperature- 95℃,digital +computer double control)

1. Introduction

XGNB Series Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC, PE, PPR, ABS and other plastic pipes. It is under the standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

2. Main technical parameters

2.1. Pressure range:0-10MPa, 16MPa, 25MPa (100Bar, 160Bar, 250Bar)

2.2. Resolution of pressure testing: 0.001MPa

2.3. Accuracy: Better than ±1%

2.4. Testing pipe: φ20mm-φ630mm

2.5. Test station: 3 stations (standard supply) or even more

2.6. Constant temp. range: room temperature~95℃

2.7. Temp. Accuracy: ±0.1℃

2.8. Temp. evenness: ±1 ℃

2.9. Time range: 1s-8760h

2.10. Time accuracy: ≤±0.1%

2.11. Power supply: 3 phase, 380v±10%, 50Hz

3. Work principle (test three pipes at the same time)

4. End caps

5. Water tank

6. Test software
