Name: PVC UH Plastic Pipe Test 100Bar 160Bar 250Bar PE Burst Hydrostatic Pressure and Pressure pp Burst Tester
Brand: PVC UH Plastic Pipe Test 100Bar 160Bar 250Bar PE Burst Hydrostatic Pressure and Pressure pp Burst Tester
SKU: XGNB-10 XGNB-16 XGNB-25, XGNB-10 XGNB-16 XGNB-25
Price: 1 USD
Availability: InStock
Rating: 4.7 (137 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1 Year

Customized support: OEM

Model Number: XGNB-10 XGNB-16 XGNB-25

Power: Electronic

Product name: Plastic PVC Pipe Hydrostatic Pressure and Burst Tester Testing Machine

Application: Hydrostatic Pressure and Burst Test

Model: XGNB-10 XGNB-16 XGNB-25

Max load: 10Mpa, 16Mpa, 25Mpa

Testing Sample: HDPE, PVC, PE, PP, PVC-UH, PVC-O,PPR, ABS and other plastic pipes

Power supply: 220V/380V 50Hz/60Hz

Standard: ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

Testing pipe diameter: 16-2000mm

Brand: GT-GoldenTech

Certificate: ISO, CE

Βασικές πληροφορίες

Πιστοποίηση: ISO, CE

Model Number: XGNB-10 XGNB-16 XGNB-25, XGNB-10 XGNB-16 XGNB-25

Πληρωμής & Αποστολής Όροι

Packaging Details: Outside package: standard export wooden case, 100Bar Hydrostatic Pressure Burst Tester

Supply Ability: 200 Set/Sets per Month 100Bar Hydrostatic Pressure Burst Tester

Περιγραφή προϊόντων

100Bar 160Bar 250Bar Plastic PP PE PVC UH Pipe Hydrostatic Pressure Burst Tester

Product Description

1. Application:

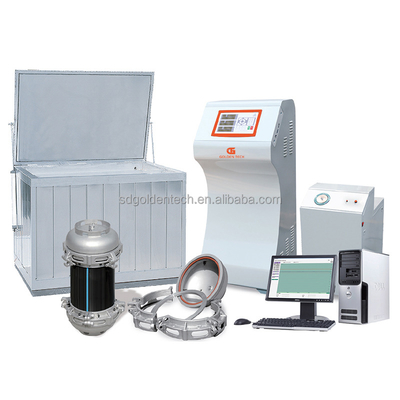

XGNB Series Hydrostatic Pressure and Burst Testing Machine is used to determine the long-term hydrostatic strength and instant blasting of HDPE, PVC, PE, PPR, ABS and other plastic pipes. It conforms to the test standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

2. Testing Standard:

ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

3. Main Technical Parameters:

Model	XGNB-10	XGNB-16	XGNB-25
Max pressure	10MPa (100Bar)	16MPa (160Bar)	25MPa (250Bar)
Resolution of pressure testing	0.001MPa, 0.01Bar
Accuracy of pressure control	-1% ~ +2%
Test station	3 stations (standard supply) or more stations can be customized
Testing pipe diameter	Φ16-Φ2000mm
Control range of water temperature	Room temperature to 95°C or 15°C to 95°C
Time range	0 - 10000h
End caps material	carbon steel / stainless steel
