Αρχική Σελίδα /Προϊόντα/Μηχανή δοκιμής πίεσης υδραυλικών/Pipe Tube Max Pressure Strength 600MPa Pressure Testing Equipment Hydrostatic Burst Pressure Test Machine

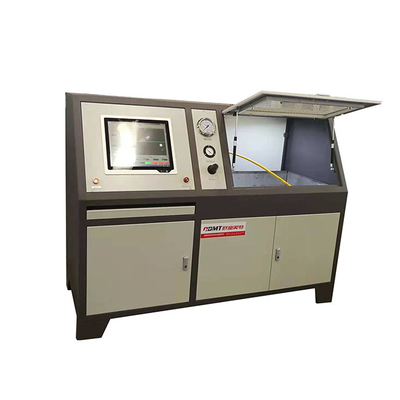

Pipe Tube Max Pressure Strength 600MPa Pressure Testing Equipment Hydrostatic Burst Pressure Test Machine

1 Set
MOQ
$5,000.00(>=1 Sets)
τιμή
Pipe Tube Max Pressure Strength 600MPa Pressure Testing Equipment Hydrostatic Burst Pressure Test Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Features: Pressure Resistance, Burst Test
Customized support: OEM
Model Number: MPT
Power: Hydraulic
Project Requirements: Performance Indicators
Subject: PVC Hose
Test Medium: Water
Test Pressure: 1~8MPa
Pressure Test Accuracy: ±0.5%F.S
Pressure Control Accuracy: ±2%F.S
Boost Rate: 10kpa/S
Warranty: One Year
Brand: ODMT
Βασικές πληροφορίες
Model Number: MPT
Πληρωμής & Αποστολής Όροι
Packaging Details: Fumigation wooden cases, which are well sealed and strong enough for long-term trip
Supply Ability: 50 Set/Sets per Day
Περιγραφή προϊόντων
Product Description
Specification

Product Introduction


The main function:
MPT series bursting pressure test bench can carry out water (oil) pressure test on various pipelines and containers. For different
test purposes, multi-step pressure test and burst test can be carried out on the tested parts by pressure setting.
Description of equipment actions and the functions implemented 1. Pressure burst test on cold PVC hose and composite hose;
2. Using a pneumatic booster system, the boost rate can be set
within the range as needed;
3. Using the pneumatic supercharger independently developed by our
company as the supercharging device, the boosting speed is fast and the pressure is stable;
4. Adopt PLC control, set and display the number of tests,
pressure, time, etc. through the touch screen, automatically stop the test and complete the task alarm buzzer when the
requirements are met;
5. The test bed is equipped with an emergency button, and the test
can be stopped immediately if there is an event.
6. Typical test procedure:

Constant speed boost-bursting
Constant speed boost-Holding pressure-bursting
Constant speed boost-Holding pressure-Pressure relief
Constant speed boost-Holding pressure-constant speed boost-Holding pressure-Until bursting
7. The operation interface is similar to the following figure:
Part of Machine
Company Profie
Certifications
Packing & Delivery
FAQ
1. Delivery Term: FOB Qingdao, by vessel
2. Delivery Time: 15-20 days
3. Payment Terms: T/T (100% to pay by T/T )
4. Installation / Operation / Service / Manual: In English
5. Warranty: One year from the date of completion of the commissioning.
6. Pre-shipment Inspection: Supplier should trial run whole line at supplier's factory before shipment.
